Ubiquiti airMAX 5GHz AC 45 Degree Dual Polarised Sector A...

AM-5AC22-45
SKU: AM-5AC22-45

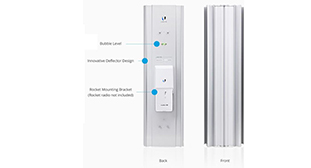

Ubiquiti airMAX 5GHz AC 22dBi 45 Degree Dual Polarised Sector Antenna AM-5AC22-45
Wireless Standards
802.11a , 802.11n , 802.11ac
Bands
5.0GHz
Connectors
RP-SMA
In stock
Description
Description
Specifications
Resources
Package Contents
As the next generation of 2x2 MIMO sector antennas from Ubiquiti Networks, the airMAX ac Sector Antennas feature significant advances in scalability, noise isolation, and beam performance to complement the Rocket 5ac radios. They are also compatible with RocketM5 models; however, optimal performance requires the Rocket5ac.
Features
  • Breakthrough Performance The airMAX ac Sector Antennas are highly resistant to noise interference in co-location deployments.

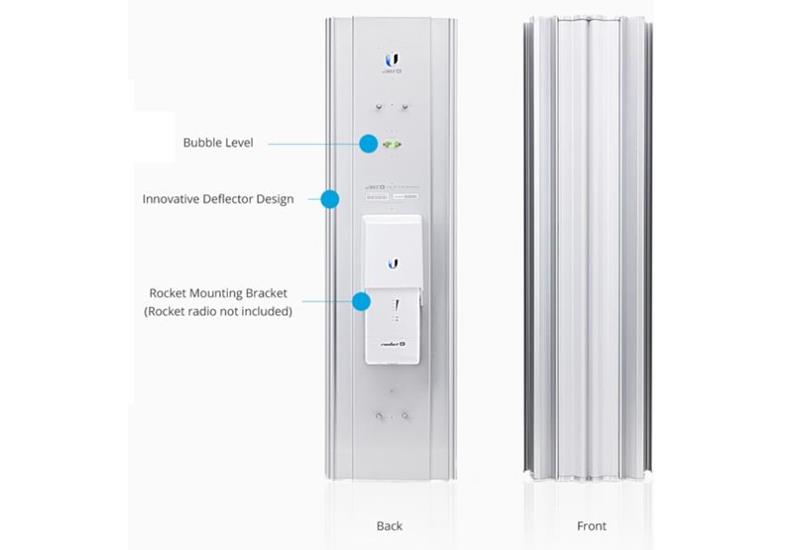

  • Innovative Deflector Design Together with the reduced sidelobes and backlobes, reject interference from other transmitters in the area – potentially on the same tower.
  • Improved Signal-to-Noise Ratio (S/N or SNR) Allows a higher-order modulation to be used, for example, 256QAM rather than 16QAM. This increases the number of bits per second for a fixed bandwidth (or data rate).
  • Innovative Design the airMAX ac Sector Antennas provide higher gain and superior beam performance for high-capacity, multipoint networks.
Details
Manufacturer's Product CodeAM-5AC22-45
Frequency Range5.10 - 5.85 GHz
Gain22 dBi
PolarisationDual-Linear
Cross Polarisation30 dB Min.
Max VSWR1.5:1
Vertical Beamwidth45° (6 dBi)
Horizontal Beamwidth45° (6 dBi)
Connector Type(2) RP-SMA Female
Dimensions750 x 215 x 94 mm
Wind Loading200km
Pole Mount Diameter40 - 80mm
Details
Pole MountYes, Included
WarrantyStandard 12 Month RTB
