19dBi 5.125 - 6.1GHz Triple Polarized MIMO Antenna

ANT-121
SKU: ANT-121

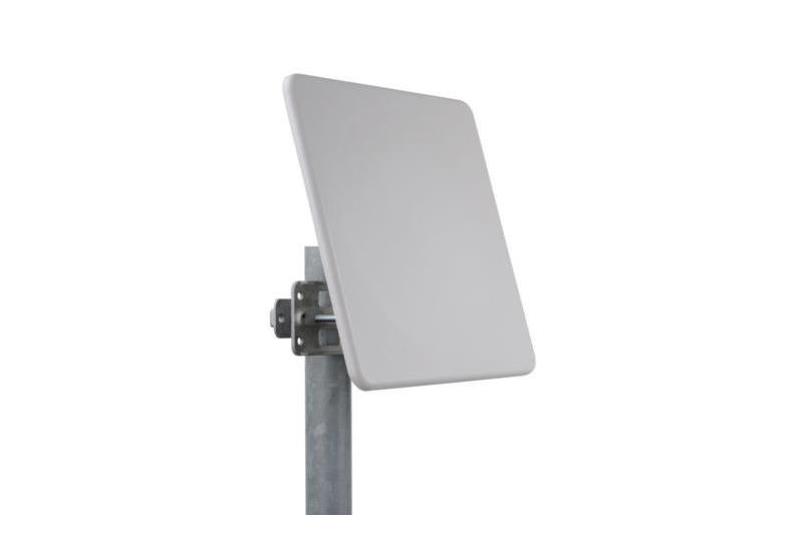

MARS 19dBi 5.125-6.1GHz Triple Polarization MIMO Antenna - MA-WA55-TPMIMO
Wireless Standards
802.11a , 802.11n
Bands
5.0GHz
Connectors
N-Type
In stock
Description
Description
Specifications
Resources
Package Contents
The MARS MA-WA55-TPMIMO Triple Polarized MIMO antenna provides coverage of 5.125-6.1GHz frequency band in a single antenna radome. This antenna is perfect for WISPs and System Integrators looking for a high quality Triple Polarity Directional Antenna for triple polarity capable radios like MikroTik RouterBOARDs.
Features
  • Specially designed for MIMO applications for optimal decorrelation
  • Light weight and durable construction
  • UV protected radome made of plastic
  • Can be customized with customer defined back plane and different connector configurations
  • Expected 10 year working life span
  • Includes heavy duty mount MNT-22 for poles up to 2.5” (63.5mm)
  • Vertical to ±45° Dual Slant - 40dB
  • +45° Dual Slant to -45° Dual Slant - 30dB
Details
Manufacturer's Product CodeMA-WA55-TPMIMO
Frequency Range5.125-6.1GHz
Gain19dBi
PolarisationDual Slant ± 45° and Vertical
Vertical BeamwidthDual Slant: 19°; V- Pol 14°
Horizontal BeamwidthDual Slant: 20°; V- Pol 22°
Connector Type3x N-Type Female
Dimensions305 x 305 x 15 mm
Pole Mount Diameter30-63mm
Details
Pole MountYes, MNT-22 Included
WarrantyStandard 12 Month RTB
