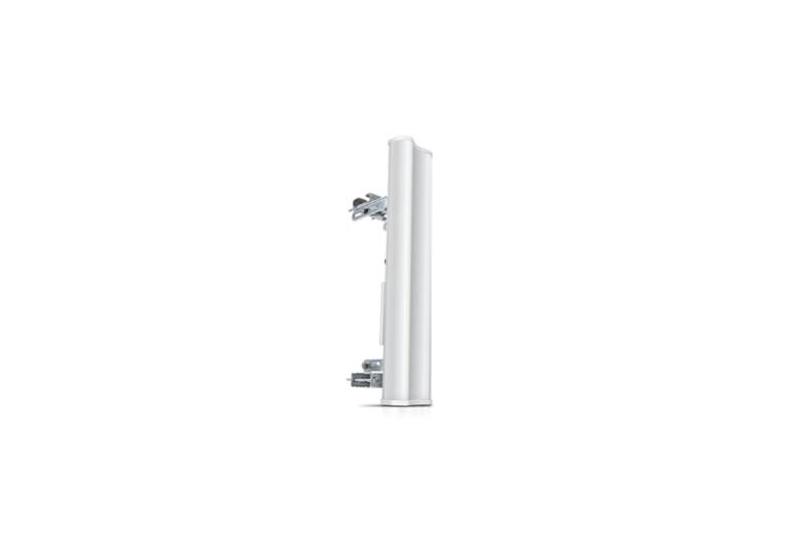

Ubiquiti AirMax 2G-15-120 2.4GHz 15dBi 120deg Sector Antenna

ANT-123
SKU: ANT-123
Ubiquiti AirMax 2G-15-120 Sector 2.4GHz 15dBi 120deg Dual Polarization Antenna
Wireless Standards
802.11b , 802.11g , 802.11n
Bands
2.4GHz
Connectors
RP-SMA
In stock
Description
Description
Specifications
Resources
Package Contents
Ubiquiti AirMax 2G-15-120 2.4GHz 15dBi 120 deggree Sector Antenna. Patent-pending next-generation technology achieves gain, cross-pol isolation, and beam shaping characteristics rivaling the highest quality cellular carrier base station antennas in the world. Instantly pair with Ubiquiti Rocket M2 to create a powerful AirMax 2x2 MIMO PtMP Base Station. Ubioquiti Rocket M2 mount and weatherproof RF jumpers included. Always seal all outdoor coax cable connections with coax seal tape.
Features
  • Rocket M2 Seamlessly Integrates with Ubiquiti Dual Polarised AirMax Base Station Sectors.
  • Ubiquiti Rocket M2 and AirMax Base Station/Rocket Antennas have been designed to seamlessly work together. Installing Ubiquiti Rocket M2 on AirMax Base Station/Rocket Antennas requires no special tools; you simply snap it into place with the mount provided with the Antennas.
  • Ubiquiti Dual Polarised antennas also work perfectly with MikroTik 802.11n NV2 long range wireless radio cards as well.
Details
Manufacturer's Product CodeAM-2G15-120
Frequency Range2.3 - 2.7 GHz
Gain15.0 - 16.0 dBi
PolarisationDual-Linear
Cross Polarisation28 dB Min
Max VSWR1.5:1
Vertical Beamwidth118° (6 dB)
Horizontal Beamwidth123° (6 dB)
Connector Type(2) RP-SMA Female
Dimensions700 x 145 x 93
Wind Loading125 mph
Pole Mount Diameter38 - 75mm
Details
Pole MountYes, Included
WarrantyStandard 12 Month RTB
