Laird 24dBi 5.15GHz to 5.85GHz Flat Panel Antenna

ANT-133
SKU: ANT-133
24dBi 5.15GHz to 5.85GHz Laird Flat Panel Antenna - PA58-24
Bands
5.0GHz
Wireless Standards
802.11a , 802.11n
Connectors
N-Type
Warranty:
In stock
Description
Description
Specifications
Resources
Package Contents

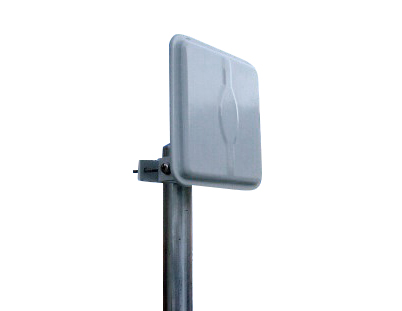

The Laird 24dBi 5.15GHz to 5.85GHz Flat Panel Antenna wideband flat panel directional antennas by Laird Technologies offer high gain in a thin low profile package. The antennas are constructed of a gray color UV resistant ABS plastic radome with an aluminum back plate. The antenna can be used in horizontal or vertical polarisation. The die cast aluminum bracket affords +/- 45 deg up or down tilt adjustment and the stainless steel hardware assures a long service life. The antenna can be surface mounted or pole mounted. The antenna comes with an integral N female connector standard. Great for use with Ubiquiti and Mikrotik high power long range radios.
Features
  • High gain / low profile / wide band
  • Pole mount or surface mount
  • Rugged and weatherproof
  • Vertical or horizontal polarization
  • Type N female connector
  • 5GHz wireless LAN applications
  • Client antennas
  • 802.11a applications
  • OEM wireless data
Details
Manufacturer's Product CodePA58-24
Frequency Range5150-5825MHz
Gain24dBi
PolarisationVertical or Horizontal
Vertical Beamwidth8deg
Horizontal Beamwidth8deg
Connector TypeN-Type Female
Dimensions390x371x21mm
Pole Mount Diameter25-64mm
Details
Pole MountIncluded
WarrantyStandard 12 Month RTB
