MARS 16dBi 90deg 5GHz Dual Pol Sector Antenna

ANT-144
SKU: ANT-144

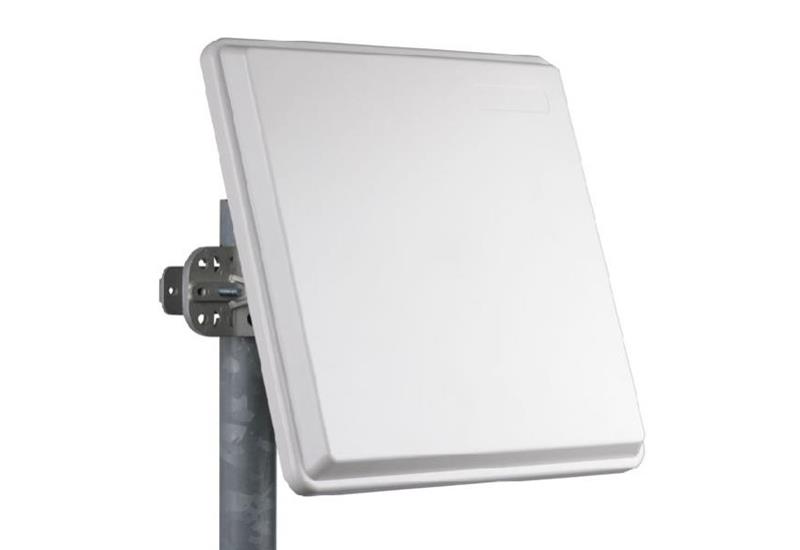

Mars 16dBi 90deg 5GHz Dual Polarized Broadband Sector Antenna MA-WD56-DP16B
Connectors
N-Type
Bands
5.0GHz
Wireless Standards
802.11a , 802.11n
Warranty:
In stock
Description
Description
Specifications
Resources
Package Contents
The MARS 16dBi 90° 4.9GHz-6.1GHz Broadband Dual Polarized Sector Antenna (MA-WD56-DP16B) provides a cost effective solution for large scale WLL, WLAN, H-LAN, ISM, UNII, Public Safety, Municipal MESH Networks and Point-to-Multi-Point applications.
Features
  • Stable performance with 16 dBi of gain
  • Compact size allowing for easy blending with any environment
  • Tilt mount allowing for quick and easy installations
  • UV protected radome suitable for harsh environment installations
  • Antenna Mount MNT-22 included
Details
Manufacturer's Product CodeMA-WD56-DP16B
Frequency Range4.9-6.1 GHz
Gain16 dBi
PolarisationVertical and Horizontal
Vertical Beamwidth8deg
Horizontal Beamwidth90deg
Connector Type2x N-Type Female
Dimensions370 x 370 x 40 mm
Pole Mount Diameter30-63mm
Details
Pole MountYes, MNT-22 Included
WarrantyStandard 12 Month RTB
