5GHz 9dBi Omni Antenna

ANT-203
SKU: ANT-203
4.9 - 5.8 GHz 9 dBi Omnidirectional Antenna - N-Female Connector
Wireless Standards
802.11a , 802.11n
Bands
5.0GHz
Connectors
N-Type
In stock
Description
Description
Specifications
Resources
Package Contents

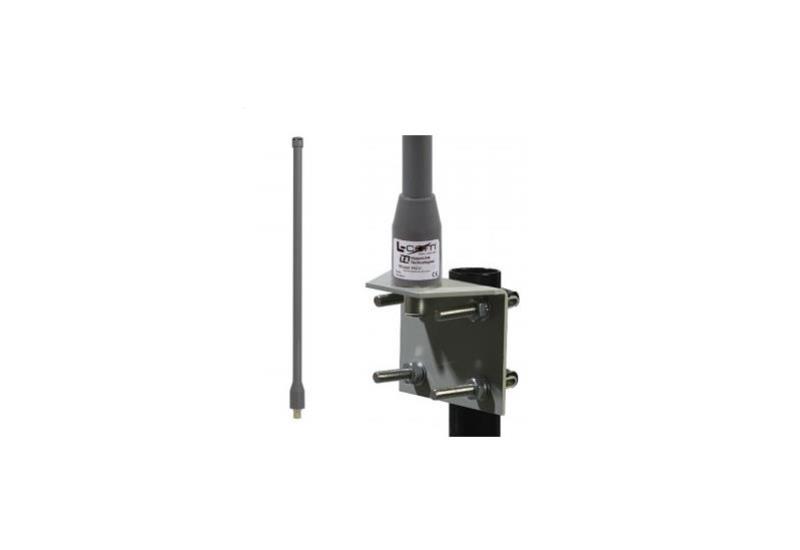

The HyperLink brand model HGV-4958-09U is an economical yet high performance 9 dBi omnidirectional antenna designed for broadband frequency operation from 4.9 GHz to 5.8 GHz. Compact and lightweight, these antennas are ideally suited multipoint applications where wide coverage is desired. The HGV-4958 Series antennas feature an integral N-Female bulkhead type connector that can mount through the wall of an equipment enclosure. Also included is a mast mounting kit which consists of a heavy-duty steel bracket and a pair of U-bolts. This kit allows for installations on masts up to 2.0" in diameter. Constructed for all weather operation, the HGV-4958 Series antennas feature sealed collinear brass elements inside a durable UV-stable machine gray fiberglass radome. A vented end cap and drain holes in the base help prevent moisture build-up inside the antenna. These features allow the antenna to be mounted in up or down positions.
Details
Manufacturer's Product CodeHGV-4958-09U
Frequency Range4900-5850MHz
Gain9dBi
PolarisationVertical
Vertical Beamwidth8deg
Horizontal Beamwidth360deg
Connector TypeN-Type (Female)
Dimensions19x610mm
Pole Mount Diameter30-50mm
Details
Pole MountYes, Included
WarrantyStandard 12 Month RTB Warranty
