25dBi 4.9GHz-5.8GHz Grid Antenna

ANT-84
SKU: ANT-84
Laird 25dBi 4.9GHz-5.8GHz Parabolic Grid Antenna GD5W-25
Wireless Standards
802.11a , 802.11n
Bands
5.0GHz
Connectors
N-Type
In stock
Description
Description
Specifications
Resources
Package Contents

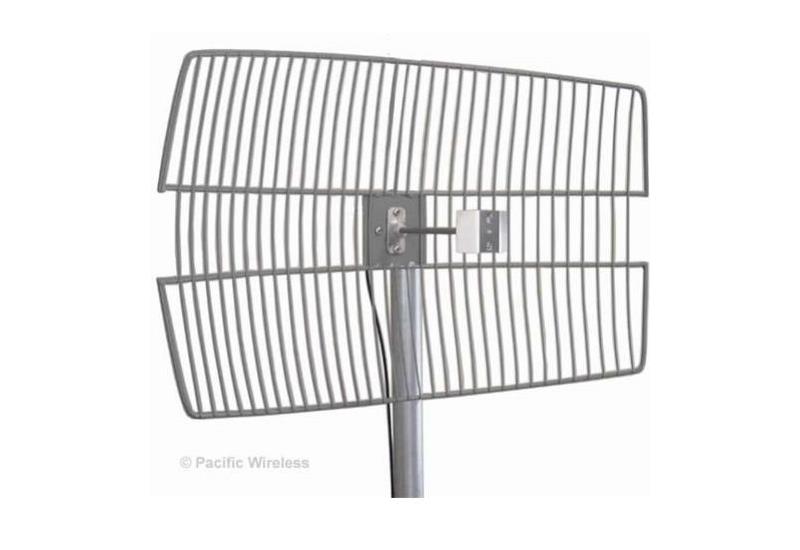

The Pacific Wireless GD5W-25 5GHz 25dBi wide band parabolic grid directional antenna utilizes a unique patented parabolic grid design with compact high performance feed. The antennas are constructed of welded steel wires which are galvanized and then powder coat painted with a light gray epoxy paint. The wire grid semi-parabolic design offers unsurpassed low wind loading while maintaining good RF performance. The compact low visual impact attractive styling blends well in almost any application. Mounting is simplified with the Pacific Wireless bracket system made of galvanized steel with stainless steel hardware. The 25dBi model comes with a super heavy duty bracket system to give even greater stability in high winds. The feed has a 30inch pigtail and N Female connector standard. Great for use with Ubiquiti and MikroTik high power point to point wireless networks. Quality heavy duty construction from Pacific Wireless USA.
Details
Manufacturer's Product CodeGD5W-25
Frequency Range4940-5850MHz
Gain25dBi
PolarisationVertical or Horizontal
Vertical Beamwidth6deg
Horizontal Beamwidth6deg
Connector TypeN-Type Female
Dimensions427x610mm
Pole Mount Diameter25-50mm
Details
Pole MountIncluded
WarrantyStandard 12 Month RTB
