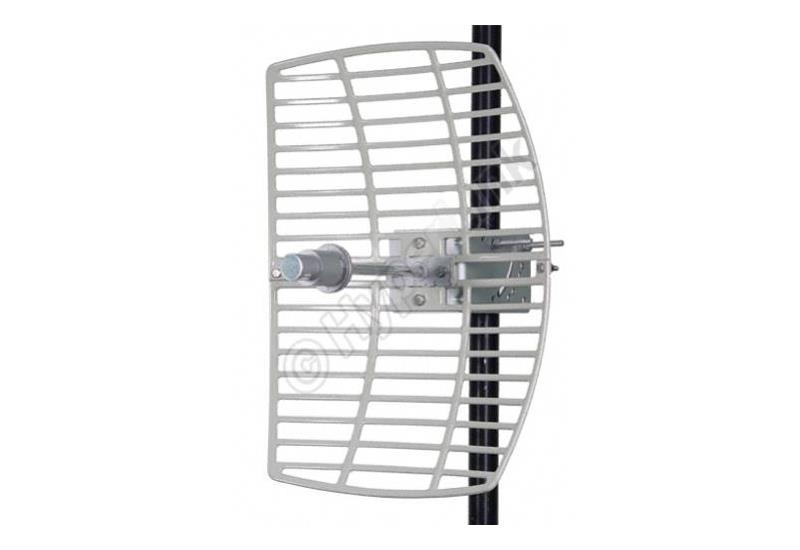

5.8 GHz 22 dBi Cast Reflector Grid Antenna

ANT-98
SKU: ANT-98
L-COM 5.8 GHz 22 dBi Cast Reflector Grid Antenna HG5822G
Wireless Standards
802.11a , 802.11n
Bands
5.0GHz
Connectors
N-Type
In stock
Description
Description
Specifications
Resources
Package Contents
The HyperGain HG5822G 22dBi High-Performance Cast Reflector Grid Wi-Fi Antenna is ideal for long-range highly directional 5.8GHz ISM and UNII band applications. These antennas are ideal for point to point systems, point to multi-point and wireless bridges. Its compact design makes it nearly invisible in most installations, and it can be installed for either vertical or horizontal polarization. The antennas' construction features a rust-proof cast aluminium reflector grid for superior strength and light weight. The 2-piece reflector grid is simple to assemble and significantly reduces shipping costs. The grid surface is UV powder coated for durability and aesthetics. The open-frame grid design minimizes wind loading. This antenna is supplied with a 60 degree tilt and swivel mast mount kit. This allows installation at various degrees of incline for easy alignment. They can be adjusted up or down from 0deg to 60deg.
Details
Manufacturer's Product CodeHG5822G
Frequency Range5725-5850MHz
Gain22dBi
PolarisationVertical or Horizontal
Vertical Beamwidth13deg
Horizontal Beamwidth10deg
Connector TypeN-Type Female
Dimensions300x400mm
Pole Mount Diameter32-50mm
Details
Pole MountIncluded
WarrantyStandard 12 Month RTB
