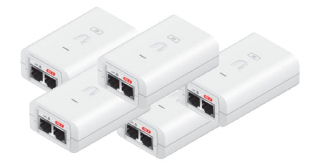

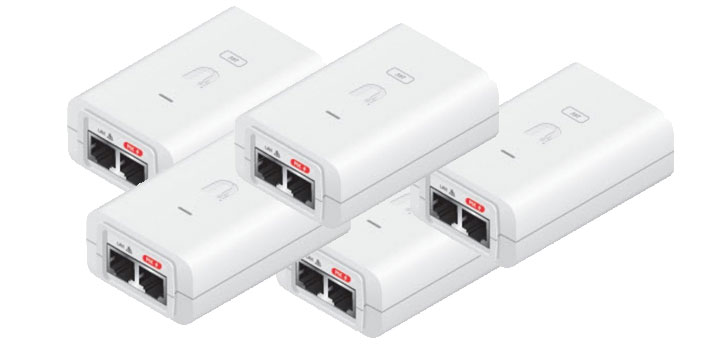

Ubiquiti 24v 1A Power Over Ethernet Supply White 5-pack

POE-24-24W-5P
SKU: POE-24-24W-5P
Ubiquiti 24v 1A Power Over Ethernet Supply White 5-pack
Ethernet Speed
1Gbps
Integrated PoE
PoE (non standard)
Warranty:
In stock
Description
Description
Specifications
Resources
Package Contents
Ubiquiti 24V 1A Power Over Ethernet Supply, White 5-pack. Ubiquiti Networks offers Power over Ethernet (PoE) Adapters to power a variety of Ubiquiti products.
Features
  • Provides Earth Grounding and Surge Protection
  • Helps Protect Against ESD Events
  • Powers Ubiquiti PoE Devices
Details
Manufacturer's Product CodePOE-24-24W-5P-AU
Dimensions88 x 57 x 33 mm
Weight135 g
Output Voltage24VDC @ 1.0A
LAN Activity IndicatorNo
Gigabit LAN PortNo
Remote Reset CapabilityYes
Reset ButtonYes
Rated Voltage100-240VAC @ 50/60Hz
Input Current0.6A @ 120VAC, 0.4A @ 240VAC
Inrush Current<60A Peak @ 120VAC, <120A Peak @ 230VAC
Efficiency80+%
Output Ripple1% Max.
Switching Frequency65 kHz
Line Regulation= 3%
Load Regulation= 5%
2-Pair PoweringPins 4, 5 (+) and Pins 7, 8 (-))
4-Pair PoweringNo
Operating Temperature0 to 40° C (32 to 104° F)
Storage Temperature-30 to 70°C (-22 to 158° F)
Operating Humidity35 to 95% Noncondensing
AC ConnectorIEC-320 C6
Data IN / POERJ45 Shielded Socket
Surge ProtectionDifference and Common Mode
Clamping Protection11V Data, 60V Power
Max. Surge Discharge1500A (8/20 µs) Power
Peak Pulse Current36A (10/1000 µs) Data
Shunt Capacitance<5 pF data
Response Time<1 ns
CertificationsCE, FCC, IC, UL
Details
Power Cord3 Pin Clover Lead
WarrantyStandard 12 Month RTB
