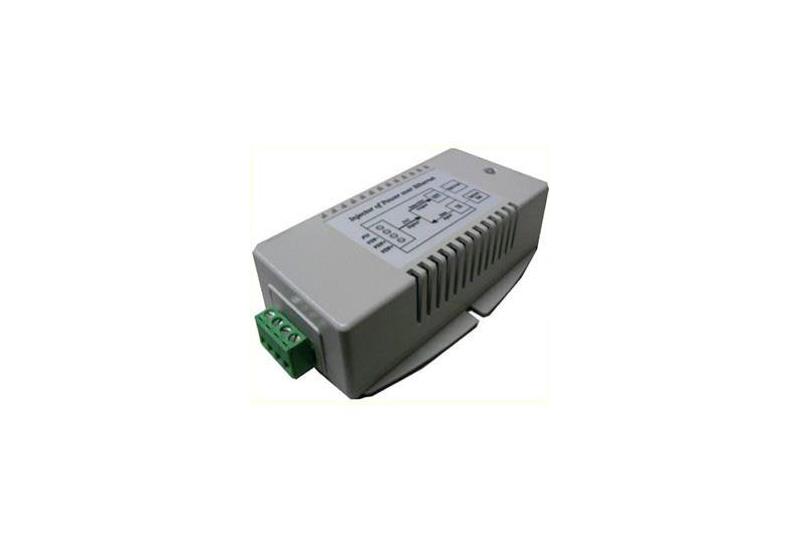

Tycon 18-36VDC In, 56VDC 802.3at 35W Out DC to DC Converter

TP-DCDC-2448GD-HP
SKU: TP-DCDC-2448GD-HP
Tycon Power Systems 18-36VDC In, 56VDC 802.3af/at 35W Out Gigabit Ethernet DC to DC Converter (TP-DCDC-2448GD-HP)
Integrated PoE
PoE (802.3af/at)
Ethernet Speed
1Gbps
In stock
Description
Description
Specifications
Resources
Package Contents
The TP-DCDC Gigabit Series of DC to DC converters offered by Tycon Power Systems are a low cost and high efficiency solution for those requiring IEEE802.3af and IEEE802.3at Power Over Ethernet from a 18VDC – 36VDC voltage source like a battery system or vehicle. They have an integrated POE injector to apply the 802.3af or 802.3at output to the CAT5 Ethernet cable. The output voltage is regulated 56VDC. They have two isolated inputs for connecting 2 power sources, like a primary and backup power source. A metal enclosure model is available for industrial applications. They accept gigabit data-in to a shielded RJ45 Jack and provide gigabit data-out and POE power on the shielded RJ45 output jack. They work by supplying power on the unused Ethernet pins 4,5(V+) and 7,8(V-). They have various protections for surge, short circuit and overload. The units have power outputs up to 35W. If the remote device does not support 802.3af or 802.3at power over Ethernet, a TP-POE-1224 802.3xx converter is available to change the POE output to passive POE with 12V or 24VDC POE output.
Features
  • Input Voltage 18V – 36VDC
  • IEEE 802.3af/at compliant POE output
  • Dual Inputs for connecting 2 power sources
  • Integrated 10/100/1000MB POE Inserter
  • High Power up to 35W
  • Low self consumption power
  • Short Circuit, Over Current and Reverse/Over Voltage Protect
  • High Temperature Operation
  • Compact size – Maximize Available Space
  • Applications: 12V / 24V Battery Systems, Vehicle Applications, Wireless Access Points and Client Devices, IP Phone and Security Camera Systems
Details
Manufacturer's Product CodeTP-DCDC-2448GD-HP
DC Input Voltage18VDC – 36VDC
DC Input ConnectorRemovable Screw Type Compression Wire Terminal (12 AWG Max)
DC Output Voltage56V (802.3af/at)
Data in & Data/POE Output ConnectorRJ45 (Shielded)
Output Current (max)0.625A
Output Power (max)35W
Self Consumption Power1W
Dimensions (LxWxH)125 x 75 x 38mm
Details
WarrantyStandard 12 Month RTB
