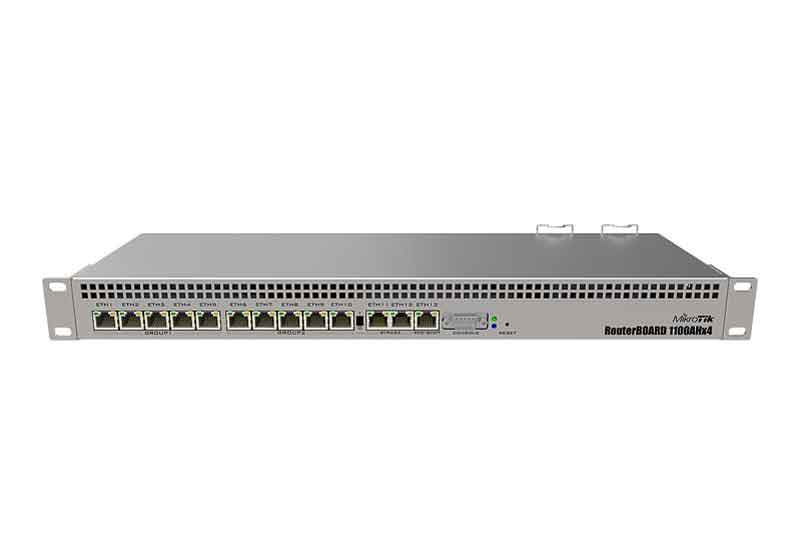

MikroTik RB1100AHx4 Dude Edition Gigabit Router

RB1100DX4
SKU: RB1100Dx4
MikroTik RouterBOARD 1100Dx4 with AL21400 Cortex A15 CPU (4-cores, 1.4GHz per core), 1GB RAM, 13xGbit LAN, 60GB M.2 drive, RouterOS L6, 1U rackmount case, Dual PSU
Ethernet Speed
1Gbps
Integrated PoE
PoE (non standard)
Warranty:
In stock
Description
Description
Specifications
Resources
Package Contents
The MikroTik RB1100AHx4 Dude Edition has Annapurna Alpine AL21400 CPU with four Cortex A15 cores clocked at 1.4Ghz each, for a maximum throughput of up to 7.5Gbit. The device supports IPsec hardware acceleration and are faster at it than any previous RouterBORD device (up to 2.2Gbps with AES128). The RB1100Dx4 comes in a 1U rackmount case and includes 13x Gigabit Ethernet ports, RS232 serial port and dual redundant power supplies (with -48v DC telecom power and 802.3at/af support). The RB1100AHx4 Dude edition features several high speed storage connectors (two SATA and two M.2) for using a Dude database, proxy cache or any other storage intensive feature. It includes a 60GB M.2 drive already installed.
Features
  • Quiet passive cooling
  • DC telecom power connector for -48V DC powering
  • IPsec hardware acceleration
Details
Product codeRB1100Dx4
CPU nominal frequency1.4 GHz
CPU core count4
Size of RAM1GB
10/100/1000 Ethernet ports13
PoE InYes, 20V - 57V (-48V supported)
Voltage MonitorYes
PCB temperature monitorYes
Dimensions444 x 148 x 47 mm
Operating SystemRouterOS
License level6
Current MonitorYes
Max Power consumption25W
Serial portRS232
Details
Power SupplyIEC Power Cord
Mounting HardwareRackmount clips included
WarrantyStandard 12 Month RTB
