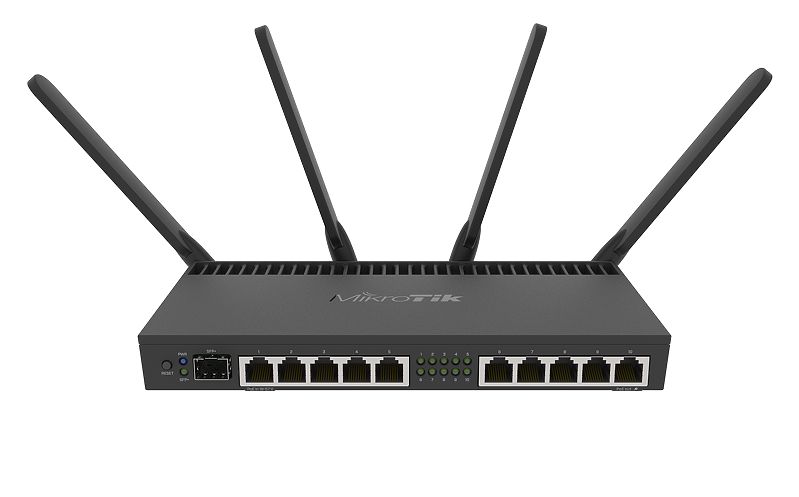

MikroTik RouterBOARD RB4011iGS+5HacQ2HnD Wireless Router

RB4011IGS+5HACQ2HND-IN
SKU: RB4011iGS+5HacQ2HnD-IN
MikroTik RouterBOARD 4011iGS+5HacQ2HnD Gigabit Wireless Router
Wireless Standards
802.11a , 802.11b , 802.11g , 802.11n , 802.11ac
Integrated PoE
PoE (non standard)
Ethernet Speed
1Gbps , 10Gbps
Bands
2.4GHz , 5.0GHz
Warranty:
In stock
Description
Description
Specifications
Resources
Package Contents
MikroTik RouterBOARD RB4011iGS+5HacQ2HnD - the RB4011 series are amazingly powerful routers with ten Gigabit ports, SFP+ 10Gbps interface and IPsec hardware acceleration for a great price!

The RB4011 uses a quad core Cortex A15 CPU, the same as in our carrier grade RB1100AHx4 unit. The unit is equipped with 1GB of RAM, can provide PoE output on port #10 and comes with a compact, fanless and professional looking solid metal enclosure in matte black.

RB4011iGS+5HacQ2HnD-IN (WiFi model) is a dual band, four chain unit with supported data rates of up to 1733 Mbps in 5GHz. For legacy devices, the unit also has a dual chain 2GHz wireless card installed in miniPCI-e slot.
Details
Product codeRB4011iGS+5HacQ2HnD-IN
CPU4 core AL21400 1.4 GHz
Size of RAM1 GB
StorageNAND 512 MB
10/100/1000 Ethernet ports10
SFP+ port1
Switch chip modelRTL8367SB
Wireless2.4 GHz radio, 5 GHz radio
Operating frequency2412 - 2484 MHz, 5150 - 5875 MHz
Antenna beam width360°
Antenna gain3 dBi (2 antennas dual band, 2 antennas single 5 GHz band)
PoE inYes (port 1), passive, 18 - 57 V
PoE outYes (port 10), passive, up to 57 V
Max power consumption23 W without PoE out, 44 W with PoE out
Supported input voltage12 V - 57 V (jack)
Voltage MonitorYes
PCB temperature monitorYes
Operating temperature-40 C to +45 C
Dimensions228 x 120 x 30 mm
Serial portRJ45
License level5
Details
Power Supply24VDC 2.5A PSU
