Tycon Power Systems TP-SW5G-MULTI 12-57V Mult Voltage 5 P...

TP-SW5G-MULTI
SKU: TP-SW5G-MULTI

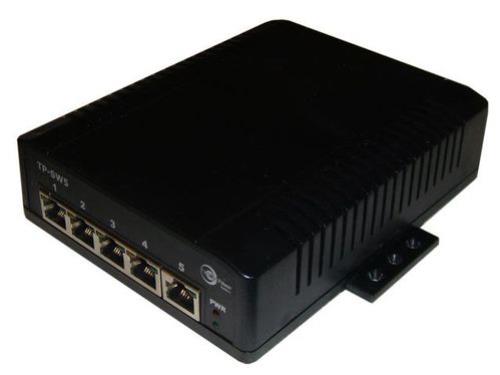

Tycon Power Systems TP-SW5G-MULTI 12-57V Mult Voltage 5 Port PoE Switch
Ethernet Speed
1Gbps
Integrated PoE
PoE (non standard)
Warranty:
In stock
Description
Description
Specifications
Resources
Package Contents
The Tycon TP-SW5G-MULTI is a Universal Multi Voltage 10/100/1000MB PoE Switch. The switch accepts up to 4 different voltages (12-57VDC) so the user can power both 48V PoE and 24V PoE devices from the same switch. The port can individually be set to Data Only by disconnecting the voltage input to that specific port.

The unit supplies PoE power to the remote device on Ethernet pins 4,5(V+) and 7,8(V-). The Ethernet spec supports distances up to 100m (328 feet) between the PoE switch and the remote device.

The switch accepts DC power from any power supply. The PoE output voltage equals the DC voltage of the power supply used from 12V to 57VDC. The switch also includes an unpowered uplink port.
Features
  • High Power Gigabit PoE Switch
  • Industrial Temperature Range
  • Ability to have different PoE voltages on each port
  • Remotely Power Equipment thru CAT5 Cable up to 100m
  • 1A per Port max
  • Automatic MDI/MDI-X Crossover
  • Automatic Speed and Duplex Sensing
  • 1K Self Learning MAC Address Table
  • DIN Rail Mountable with included kit
Details
Manufacturer's Product CodeTP-SW5G-MULTI
DC Input Voltage12V to 57VDC, Reverse Polarity Protected
PoE MethodPassive PoE
Data in & Data/POE Output ConnectorRJ45 (Shielded)
Output Current (max)1A per port
Self Consumption Power>3W
Ethernet Speed1000Mbps / 100 Mbps /10 Mbps Auto-negotiation
Interfaces1 data/PoE input and 4 data/PoE, automatic crossover and polarity
POE Output PortsPorts 1-4
Dimensions (LxWxH)159 x 118 x 40mm
